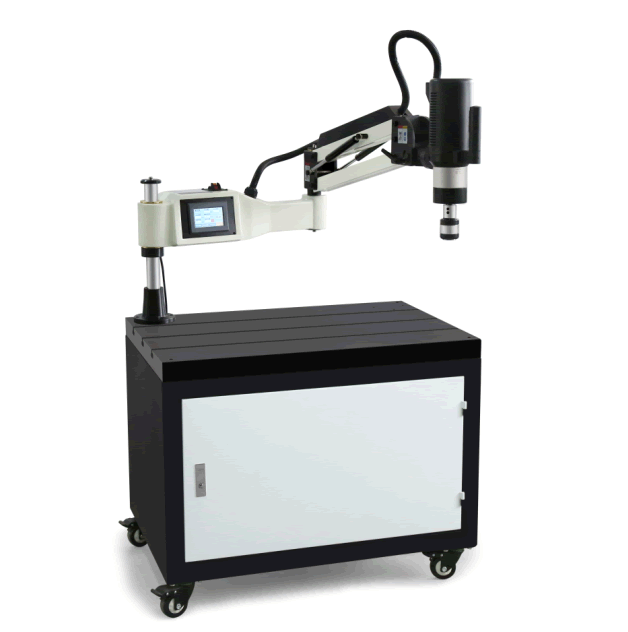

HRT-B-D(M6-30) tapping machine

HRT-B-D(M6-30) tapping machine
Our tapping machine adopts self-developed pneumatic tapping machine motor and quick change reducer. The service life of our special pneumatic motor is more than 5 times that of the traditional pneumatic motor. Our tapping machine has the widest tapping range of pneumatic and electric suspension tapping machines in China, ranging from M3-M60. All key parts of pneumatic and electric tapping machines are designed and manufactured independently, which better controls the quality of the tapping machine

HRT-B-D(M6-30) tapping machine

Power supply type: AC power supply

Rated power: 1200W

Power supply voltage: 220V

Tapping range: M6-M30

Speed range: 0-200 rpm (stepless speed regulation)

Working range: 1200mm horizontally, 600mm vertically adjustable

Basic configuration: one set of upper and lower bracket of articulated boom, one set of servo motor, one set of reducer, one set of tap chuck M6-M30

Optional configuration: universal working head, magnetic base 600KG, mobile worktable.
